Product Code: 316328601
DIN 16mm Button Head M10 x 1 Grease Fitting
316328601
Description
These grease fittings are manufactured using 316 Stainless Steel. 303 Stainless version is code: 828601
Dimensions & Attributes
| Angle | Straight |
|---|---|
| Ball Check | Yes |

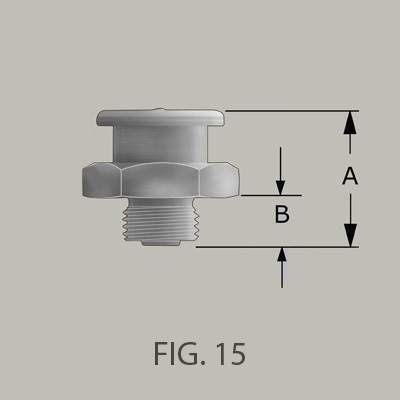

| Dimension A (mm) | 17.6 Max |
| Dimension B (mm) | 6.5 Max |
| Hardened | No |
| Hidden | No |
| Hole | M10 x 1 |
| International | DIN 3404 |
| Product Type | Button Head Grease Fitting |
| Material | 316 Stainless |
| Product Long | Normal |
| SB quantity | on request |
| Spanner Wrench Size | 17mm Hexagon |
| Special | Yes |
| Stock Item | Class 4 Parts |
| Thread | M10 x 1 Parallel |
| Thread Type | Metric |
| Zinc Plating | No |
